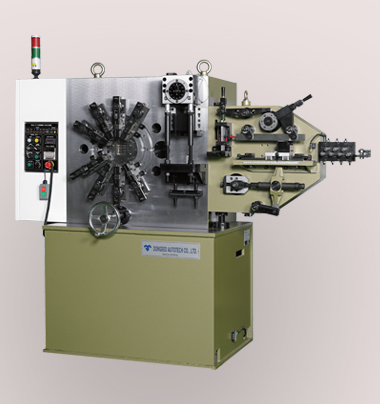

DS - 8 - 220
DS - 8 - 220
| SPEC | MODEL | DS-8-220 |
| MATERIAL | STRIP (MAX.mm) | 30w x 0.8t |
| WIRE (MAX.mm) | Ø 1.5 | |
| FEEDER | FEEDING LENGTH (MAX.mm) |
220 |
| FEEDING ACCURACY (mm) | 0.01 | |
| PRESS | CAPACITY (TON) | 8 |
| STROKE (mm) | 15 | |
| STROKE ADJUSTED (mm) | 20 | |
| TABLE DIMENSION (mm) | 250L x 120w | |
| BENDING | BENDING CAPACITY (TONS / SET) | 1 ~ 1.5 |
| STROKE (MAX.mm) | 30 | |
| SLIDE (MAX.SET) | 11 | |
| BODY | POWER SUPPLY 50 / 60Hz | 220 x 3ph |
| MOTOR POWER (KW.P) | 2.2 ~ 4 | |
| DIMENSION (mm) | 850w 1850L 1700H |
|
| PRODUCT CAPACITY (AT.60HZ, SPM) |
0-150 |
