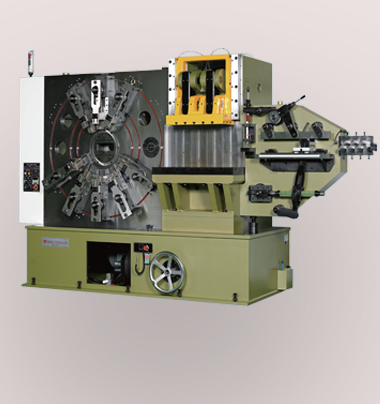

DS - 60 - 450
SPEC | MODEL | DS-60-450 |
MATERIAL | STRIP (MAX.mm) | 100w x 3t |
WIRE (MAX.mm) | Ø 10 | |
FEEDER | FEEDING LENGTH (MAX.mm) |
450 |
FEEDING ACCURACY (mm) | 0.01 | |
PRESS | SAMPING FORCE(TON) | 50 - 60 |
STROKE (mm) | 25 | |
STROKE ADJUSTED (mm) | 30 | |
TABLE DIMENSION (mm) | 900L x 350w | |
BENDING | BENDING FORCE (TONS / SET) | 5 |
STROKE (MAX.mm) | 85 | |
SLIDE (MAX.SET) | 11 | |
BODY | POWER SUPPLY 50 / 60Hz | 220 x 3ph |
MOTOR POWER (KW.P) | 15 | |
DIMENSION (mm) | 1300w 4100L 2400H |
