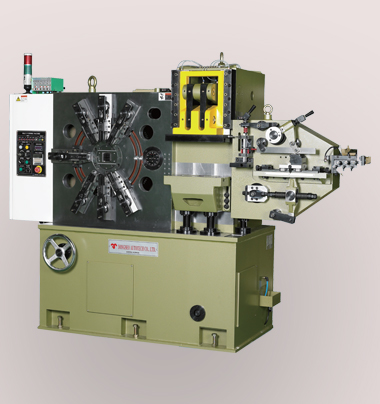

DS - 15 - 220
DS - 15 - 220
| SPEC | MODEL | DS-15-220 |
| MATERIAL | STRIP (MAX.mm) | 40w x 1.4t |
| WIRE (MAX.mm) | Ø 2.5 | |
| FEEDER | FEEDING LENGTH (MAX.mm) |
220 |
| FEEDING ACCURACY (mm) | 0.01 | |
| PRESS | CAPACITY (TON) | 10 - 15 |
| STROKE (mm) | 20 | |
| STROKE ADJUSTED (mm) | 20 | |
| TABLE DIMENSION (mm) | 380L x 200w | |
| BENDING | BENDING CAPACITY (TONS / SET) | 1.5 ~ 2 |
| STROKE (MAX.mm) | 40 | |
| SLIDE (MAX.SET) | 11 | |
| BODY | POWER SUPPLY 50 / 60Hz | 220 x 3ph |
| MOTOR POWER (KW.P) | 7.5 ~ 4 | |
| DIMENSION (mm) | 1050w 2200L 1900H |
|
| PRODUCT CAPACITY (AT.60HZ, SPM) |
0-120 |
