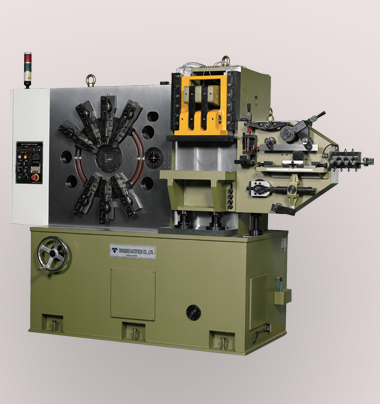

DS - 25 - 220
DS - 25 - 220
| SPEC | MODEL | DS-25-220 |
| MATERIAL | STRIP (MAX.mm) | 60w x 1.6t |
| WIRE (MAX.mm) | Ø 6 | |
| FEEDER | FEEDING LENGTH (MAX.mm) |
220 |
| FEEDING ACCURACY (mm) | 0.01 | |
| PRESS | CAPACITY (TON) | 20 - 25 |
| STROKE (mm) | 20 | |
| STROKE ADJUSTED (mm) | 25 | |
| TABLE DIMENSION (mm) | 460L x 240w | |
| BENDING | BENDING CAPACITY (TONS / SET) | 2 ~ 3.5 |
| STROKE (MAX.mm) | 50 | |
| SLIDE (MAX.SET) | 11 | |
| BODY | POWER SUPPLY 50 / 60Hz | 220 x 3ph |
| MOTOR POWER (KW.P) | 11 ~ 4 | |
| DIMENSION (mm) | 1200w 2400L 2000H |
|
| PRODUCT CAPACITY (AT.60HZ, SPM) |
0-100 |
