CNC Spring Coiling Machines
JD-205A
| Modle | JD-205A |
| AXES | 2 |
| Wire Diameter | 0.06mm-0.5mm |
| MAX Outer Diameter | 15mm |
| Max. Production Speed | 400pcs/min |
| Feed Length | Unlimited |
| Feed Length | Unlimited |
| Wire Feed Axis Servo Mote | 0.75kw |
| Cam Axis Servo Moter | 0.75kw |
| Monitor Display | Color/Chinese/English |
| The Machine Size | 70*60*130cm |
| Machine Weights | 300kg |
| Power | 220V 3P 50/60Hz |

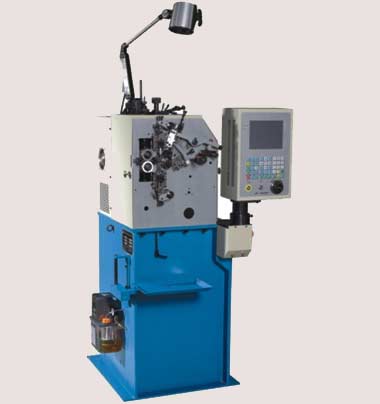

JD-208A
| Modle | JD-208A |
| AXES | 2 |
| Wire Diameter | 0.1mm-0.8mm |
| MAX Outer Diameter | 20mm |
| Max. Production Speed | 550pcs/min |
| Feed Length | Unlimited |
| Send The Spool(Y) | 0.75kw |
| The Camshaft(X) | 0.75kw |
| Monitor Display | Color/Chinese/English |
| The Machine Size | 80*65*145cm |
| Machine Weights | 500kg |
| Power | 220V 3P 50/60Hz |

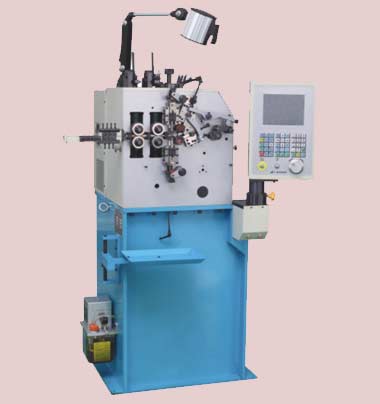

JD-212A
| Modle | JD-212A |
| AXES | 2 |
| Wire Diameter | 0.2mm-1.2mm |
| MAX Outer Diameter | 25mm |
| Max. Production Speed | 300pcs/min |
| Feed Length | Unlimited |
| Send The Spool(Y) | 1.2kw |
| The Camshaft(X) | 1.2kw |
| Monitor Display | Color/Chinese/English |
| The Machine Size | 80*65*145cm |
| Machine Weights | 500kg |
| Power | 220V 3P 50/60Hz |

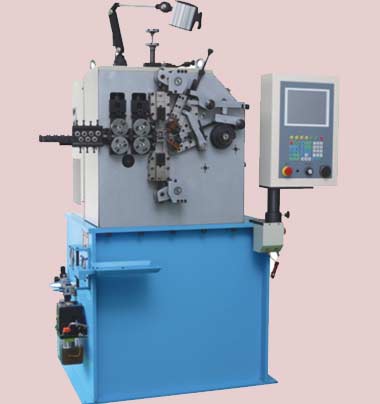

JD-230
| Modle | JD-230 |
| AXES | 2 |
| Wire Diameter | 0.8mm-3.0mm |
| MAX Outer Diameter | 50mm |
| Max. Production Speed | 200pcs/min |
| Feed Length | Unlimited |
| Send The Spool(Y) | 4.5kw |
| The Camshaft(X) | 2.7kw |
| Outside Diameter Shaft | － |
| Pitch Axis | － |
| Monitor Display | Color/Chinese/English |
| The Machine Size | 105*90*160cm |
| Machine Weights | 1000kg |
| Power | 220V 3P 50/60Hz |

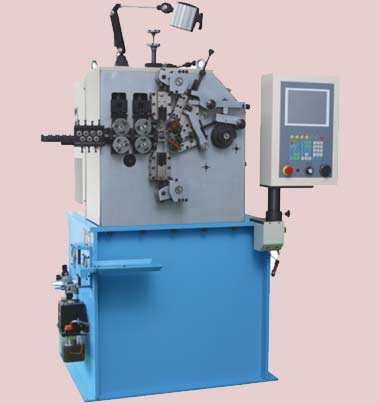

JD-330
| Modle | JD-330 |
| AXES | 3 |
| Wire Diameter | 0.8mm-3.0mm |
| MAX Outer Diameter | 50mm |
| Max.Production Speed | 250pcs/min |
| Feed Length | Unlimited |
| Send The Spool(Y) | 4.5kw |
| The Camshaft(X) | 2.7kw |
| Outside Diameter Shaft | － |
| Pitch Axis | 1.2kw |
| Monitor Display | Color/Chinese/English |
| The Machine Size | 120*120*170cm |
| MachineWeights | 1000kg |
| Power | 220V 3P 50/60Hz |

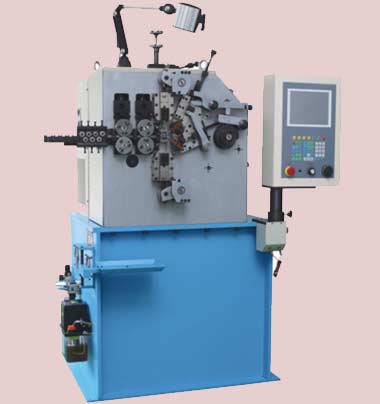

JD-430
| Modle | JD-430 |
| AXES | 4 |
| Wire Diameter | 0.8mm-3.0mm |
| MAX Outer Diameter | 50mm |
| Max. Production Speed | 250pcs/min |
| Feed Length | Unlimited |
| Send The Spool(Y) | 4.5kw |
| The Camshaft(X) | 2.7kw |
| Outside Diameter Shaft | 2.0kw |
| Pitch Axis | 1.2kw |
| Monitor Display | Color/Chinese/English |
| The Machine Size | 125*95*170cm |
| Machine Weights | 1000kg |
| Power | 220V 3P 50/60Hz |

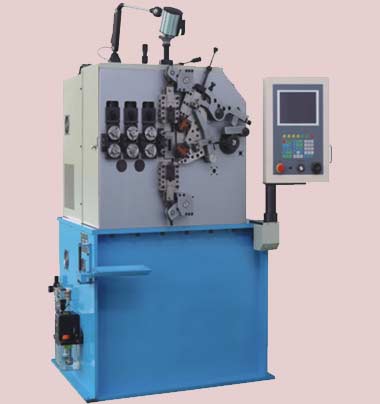

JD-240
| Modle | JD-240 |
| AXES | 2 |
| Wire Diameter | 1.2mm-4.0mm |
| MAX Outer Diameter | 70mm |
| Max. Production Speed | 150pcs/min |
| Feed Length | Unlimited |
| Send The Spool(Y) | 7.5kw |
| The Camshaft(X) | 5.5kw |
| Outside Diameter Shaft | － |
| Pitch Axis | － |
| Monitor Display | Color/Chinese/English |
| The Machine Size | 105*90*160cm |
| Machine Weights | 1000kg |
| Power | 220V 3P 50/60Hz |

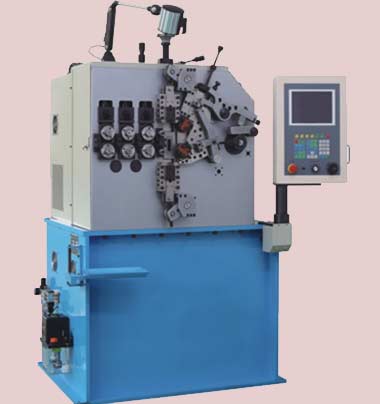

JD-340
| Modle | JD-340 |
| AXES | 3 |
| Wire Diameter | 1.2mm-4.0mm |
| MAX Outer Diameter | 70mm |
| Max. Production Speed | 150pcs/min |
| Feed Length | Unlimited |
| Send The Spool(Y) | 7.5kw |
| The Camshaft(X) | 5.5kw |
| Outside Diameter Shaft | － |
| Pitch Axis | 2.0kw |
| Monitor Display | Color/Chinese/English |
| The Machine Size | 105*90*160cm |
| Machine Weights | 1000kg |
| Power | 220V 3P 50/60Hz |
JD-440
| Modle | JD-440 |
| AXES | 4 |
| Wire Diameter | 1.2mm-4.0mm |
| MAX Outer Diameter | 70mm |
| Max. Production Speed | 150pcs/min |
| Feed Length | Unlimited |
| Send The Spool(Y) | 7.5kw |
| The Camshaft(X) | 5.5kw |
| Outside Diameter Shaft | 2.0kw |
| Pitch Axis | 2.0kw |
| Monitor Display | Color/Chinese/English |
| The Machine Size | 105*90*160cm |
| Machine Weights | 1000kg |
| Power | 220V 3P 50/60Hz |

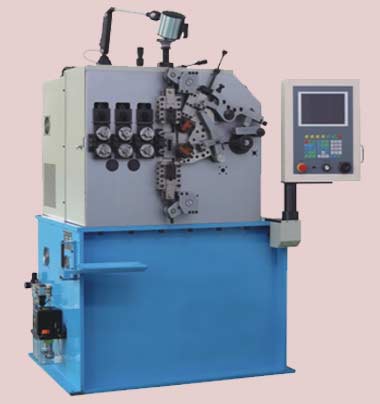

JD-550
| Modle | JD-550 |
| AXES | 5 |
| Wire Diameter | 1.5mm-5.0mm |
| MAX Outer Diameter | 80mm |
| Max. Production Speed | 120pcs/min |
| Feed Length | Unlimited |
| Power Consumption | 22KW |
| Monitor Display | Color/Chinese/English |
| Machine Weights | 3000kg |
| Power | 220V 3P 50/60Hz |

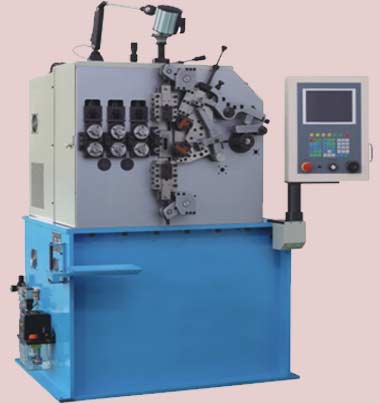

JD-580
| Modle | JD-580 |
| AXES | 5 |
| Wire Diameter | 3.0mm-8.0mm |
| MAX Outer Diameter | 120mm |
| Max. Production Speed | 100pcs/min |
| Feed Length | Unlimited |
| Send The Spool(Y) | 30KW |
| Outside Diameter Shaft(X) | 5.5KW |
| Pitch Axis(Z) | 2.7KW |
| Top Knife(A) | 5.5KW |
| Bottom Knife(B) | 5.5KW |
| Monitor Display | Color/Chinese/English |
| The Machine Size | 2100mmX1800mmX2200mm |
| Machine Weights | 5000kg |
| Power | 220V 3P 50/60Hz |
