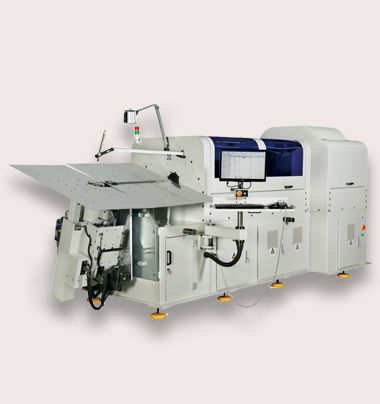

MODEL WB100 - 8A
MODEL WB100 - 8A
| PARAMETER | SPECIFICATION |
| Wire diameter | 3-10 (soft wire) |
| 3-6 (hard wire) | |
| MAX.wire feeding speed | 71m/min |
| Distance between the bending head and machine body | 1010mm |
| Distance between the cutter and machine body | 848mm |
| Bending pin axis | 3.0KW |
| Support pin axis | 3.0KW |
| Bending head up/down axis | 3.0KW |
| Bending head left/down axis | 2.0kw |
| Support table up/down axis | 2.0kw |
| Cutting axis | 3.0KW |
| Wire feed axis | 4.4KW |
| Rotating wire axis | 4.4KW |
| Machine dimensions [LxWxH] | 4.8x1.6x1.95m |
| Machine weight | approx 4000kgs |
