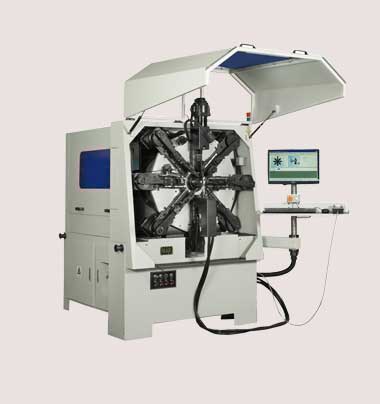

MAX CR45 / CR65
MAX CR45 / CR65
| PARAMETER | SPECIFICATION | |
| CR45 | CR65 | |
| Wire diameter | 1.5-4.5mm | 3.0-6.5mm |
| No. of axis | 12-16 | 12-16 |
| MAX.wire feeding speed | 71m/min | 55m/min |
| Max feed lenght | unlimited | unlimited |
| Slide by ball screw | 2.9kw | 4.4kw |
| Slides by crank | 2.9kw x 7 | 4.4kw x 7 |
| Rotary quill | 0.85kw | 0.85kw |
| Wire rotating | 4.4KW | 4.4kw |
| Wire feed | 5.5kw | 7.5kw |
| Spinner | 1.8kw | 3.0kw |
| Slide stroke | 140mm | 170mm |
| Machine dimensions [LxWxH] | 3.4x1.9x1.905(m) | 3.68x1.99x2.475(m) |
| Machine weight | 4000kg | 6500kg |
