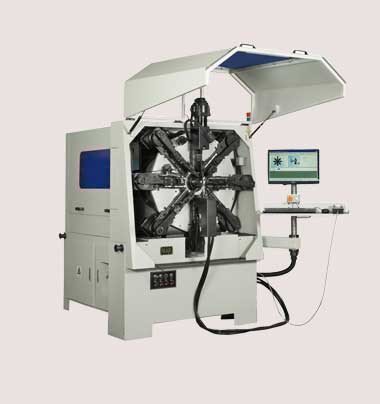

MAX CR23
MAX CR23
| PARAMETER | SPECIFICATION |
| Wire diameter | 0.3-2.3mm(0.5-2.3mm rotating wire) |
| No.of axis | 12-16 |
| MAX.wirefeeding speed | 105m/min |
| Max feed lenght | unlimited |
| Slide by ball screw | 0.85kw |
| Slide by crank | 0.85kw x 7 |
| Rotary quill | 0.4kw |
| Wire rotating | 3.0KW |
| Wire feed | 3.0KW |
| Spinner | 0.4kw |
| Slide stroke | 70mm |
| Machine dimensions [LxWxH] | 2.63x1.3x1.75(m) |
| Machine weight | 1500kgs |
