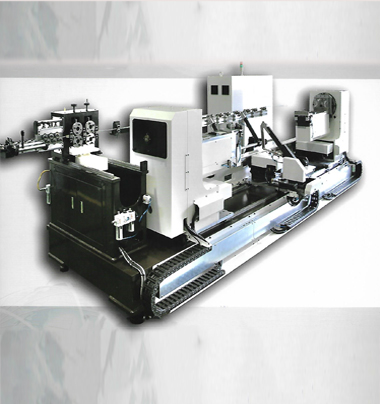

MODEL AT-THB (F) Type
-Type.jpg)
MODEL AT-THB (F) Type
| MODEL |
AT-THB 60 |
AT-THB 80 |
| Material |
Soft Wire (m/m) |
3.0~6.0 |
4.0~8.0 |
| Hard Wire (m/m) |
2.0~4.0 |
2.6~5.0 |
| Head Rotating |
Min. Angle(˚) |
0.01 |
0.01 |
| Max. Angle(˚) |
99999.99 |
99999.99 |
| Head Feeding Speed |
m/m(sed) |
0~800 |
0~800 |
| Servo Spinner |
Min. Angle(˚) |
0.01 |
0.01 |
| Max. Angle(˚) |
99999.99 |
99999.99 |
| Grippers 's Slide Speed |
Min. (m/m) |
0.01 |
0.01 |
| Max. (m/m) |
400 |
500 |
| Max. (m/m)(sec) |
0~500 |
0~500 |
| Mandrel |
up/down Stroke (m/m) |
0~20 |
0~30 |
| Power supply |
|
200/220V 3Phase |
200/220V 3Phase |
| Machine |
W×L×H |
1600×5200×1500 |
1800×6000×1600 |
| Weight |
(kg) |
4,000 |
5,000 |
