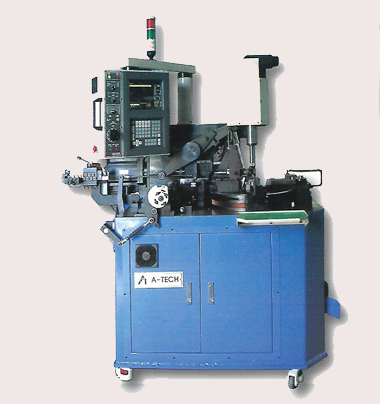

AT - T
AT - T
| Model |
AT - T10 |
AT - T23 |
AT - T40 |
| Wire Diameter |
0.15~1.0mm |
0.5~2.3mm |
2.0~4.0mm |
| Coiling 0.0 |
16mm(Max) |
30mm(Max) |
52mm(Max) |
| Feeding Length |
100mm(Max) |
200mm(Max) |
250mm(Max) |
| Pitch Length |
0~60mm |
0~80mm |
0~100mm |
| Coil Shaft Speed |
120mm(Max) |
100mm(Max) |
80mm(Max) |
| Production Capacity |
1 0~80EA/min |
5~50EA/min |
0~40EA/min |
| Machine Weight |
400kg |
1200kg |
1850kg |
| Power Supply |
220V, 3P |
220V,3P |
220V, 50/60HZ, 3P |
| Motor Capacity |
1 .2KW, 400W, 600W |
3.5KW, 1 KW, 600W |
4.4KW, 2.0KW, 1 KW |
| Dimension(Wx Lx H.mm) |
700X700X 1600 |
1300 X 90QX 1900 |
1500 X 1100 X 2100 |
