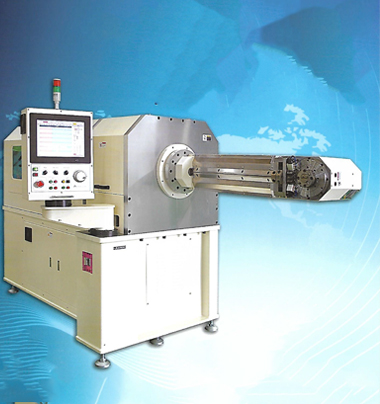

MODEL AT - HB80 HB100 HB130 HB160 - TYPE
MODEL AT - HB80 HB100 HB130 HB160 - TYPE
| MODEL No. | AT-HB80 | AT-HB100 | AT-HB130 | AT-HB160 | |
|---|---|---|---|---|---|
| Material | Soft wire diameter (mm) |
3.0 ~ 8.0 | 4.0 ~ 10.0 | 6.0 ~ 13.0 | 6.0 ~ 16.0 |
| Hard wire diameter (mm) |
2.5 ~ 4.0 | 3.0 ~ 6.0 | 4.0 ~ 8.0 | 4.0 ~ 10.0 | |
| Max bend angle | infinty | ||||
| Max wire feed length | infinty | ||||
| Max arm rotation angle | infinty | ||||
| Motion speed |
Feed | Max100m/Min | |||
| Bend | Max600º/Sec | ||||
| Arm rotation | Max400º/Sec | ||||
| Cut | Max100mm/Sec | ||||
| Mandrel rotation | 90º, 180º, 270º | ||||
| Offset | Max125mm/Min | ||||
| Mandrel up/down | Max300mm/Sec | ||||
| Sleeve up/down | Max300mm/Sec | ||||
| Repeational accurate | Feed | ±0.1mm | |||
| Bend | ±0.1º | ||||
| Arm rotation | ±0.1º | ||||
| Motor Capacity | 12kw | 14kw | 16kw | 19kw | |
| Number of nc axes | 4Axis | 4Axis | 5Axis | 5Axis | |
| Machine weight | 2,200kg | 2,800kg | 3,200kg | 3,600kg | |
| Machine dimension(mm) | 1600(H) -1250(W) -2600(D) |
1680(H) -1350(W) -2850(D) |
1750(H) -1600(W) -3100(D) |
1750(H) -1600(W) -3100(D) |
|
| Power source | 200~230V x 3Phases 50/60Hz |
||||
| Standard attachement | Mandrel(Desinated size) - 1Piece Cutter(Desinated size) - 1Set Feed rollers(Desinated size) - 1Set(4Pieces) Wire guide - 1piece |
||||
| Optional attachement | Unloading robot surface cutter unit (Online with Vender is possible) End forming press unit (Online with Vender is possible) Mandrel feed rollers, etc. Bending tools(Desinated size) |
||||
