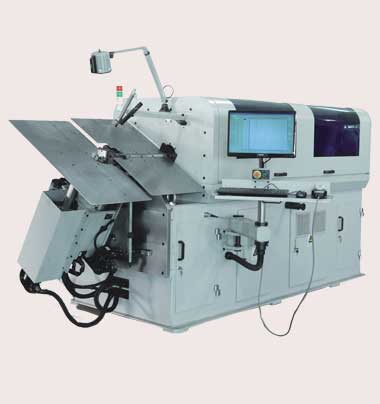

MODEL - WB60 - 8A
MODEL - WB60 - 8A
| PARAMETER | SPECIFICATION |
| Wire diameter | 2mm-6mm (soft wire) |
| 2mm-4mm (hard wire) | |
| Max.wirefeeding speed | 54/min |
| Distance between the bending head and machine body | 59mm |
| Bending pin aixs | 1.3kw |
| Support pin axis | 1.3kw |
| Bending head left/right | 1.3kw |
| Bending head U/D axis | 1.3kw |
| Support support U/D axis | 0.85kw |
| Cutting axis | 1.3kw |
| Wire feed axis | 3.0KW |
| Rotating wire axis | 3.0KW |
| Machine dimensions [LxWxH] | 3.3x2.2.03x1.6 (m) |
| Machine weight | 3000kg |
